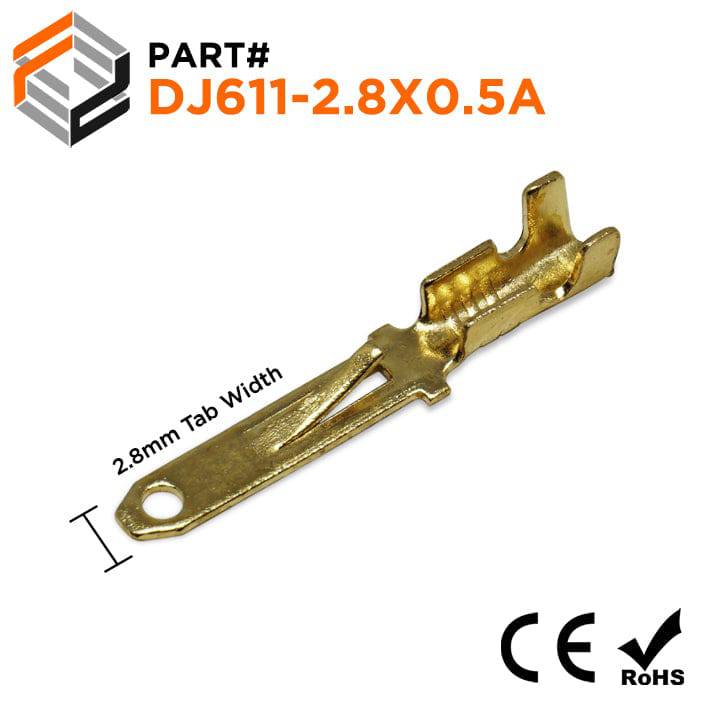

DJ611-2.8X0.5A - 22 to 16 AWG Male Quick Disconnects, 2.8mm NEMA Tab, Brass, 100 Pieces—
$2.16
The Story
Open barrel terminals (Faston B Type Terminals) have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| NEMA Tab: | 2.8Â x 0.5mm (0.11" x 0.019") |
| L: | 21.6mm (0.85") |
| W: | 2.85mm (0.112") |
| F: | 12.0mm (0.472") |
| H: | 0.5mm (0.019") |
| Material: | Untinned Brass |
| Surface Treatment: | Standard Chemical Treatment |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!Description
Open barrel terminals (Faston B Type Terminals) have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.
